AWSG Field

Four-channel rugged GNSS waveform generator for multi-channel CRPA and anti-jam development testing.

Download Technical Datasheet (PDF)Discuss a Test Requirement

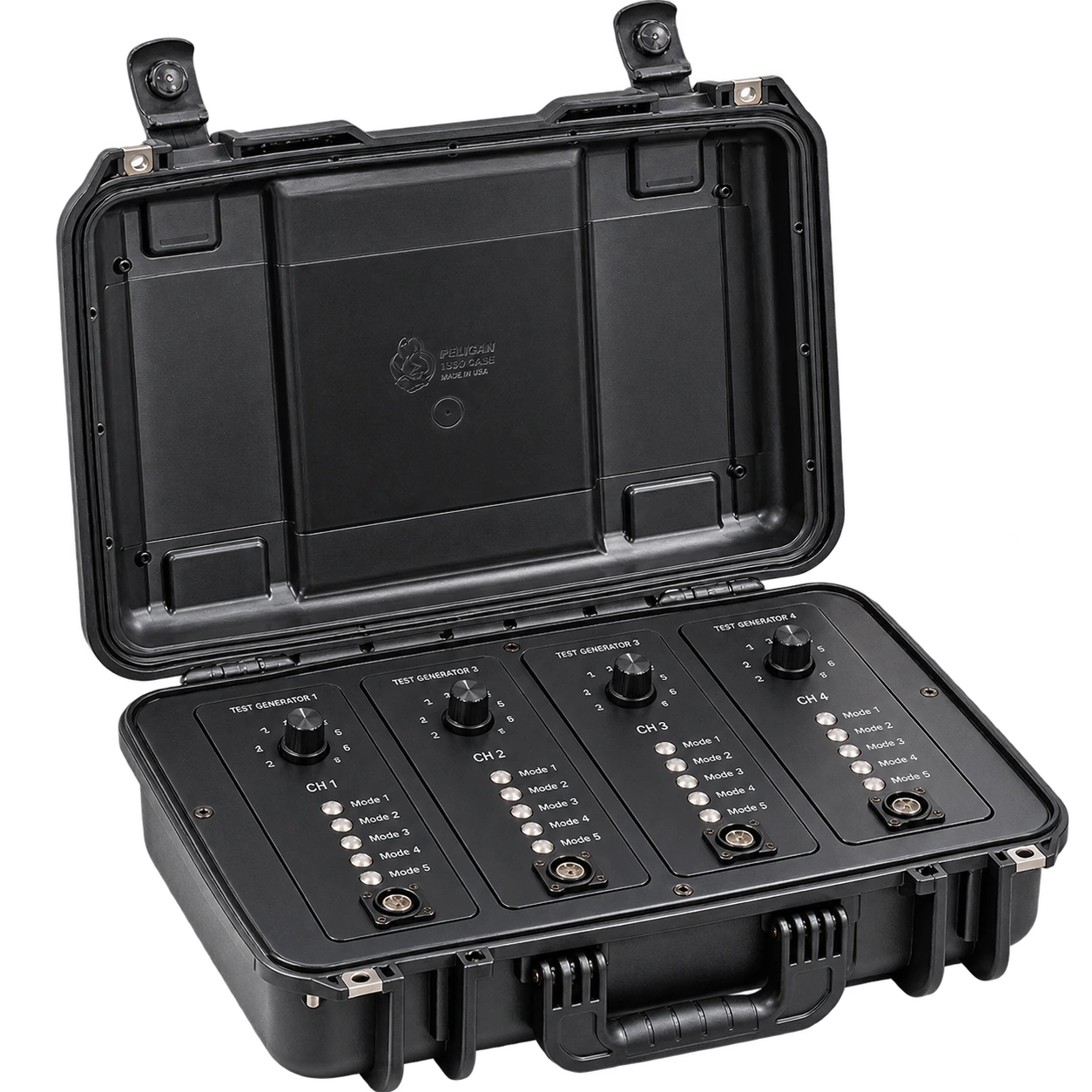

AWSG Field GNSS CRPA test system

Product overview

Designed for controlled CRPA and anti-jamming development testing across 1100-1650 MHz. AWJ-TEST provides repeatable waveform profiles for engineering evaluation and is intended to complement established laboratory, chamber, wavefront and formal qualification methods.

Multi-channel capability: The Field system provides four independently configurable channels for distributed or multi-direction test arrangements.

Preliminary specifications

Channels4 independent; 1-4 operator-selectable
Frequency1100-1650 MHz
GNSS bandsGPS L1/L2/L5; GLONASS; Galileo; BeiDou bands within stated frequency range
Output power-10 to +10 dBm, adjustable per channel
Waveform modes5 profiles; independent channel configuration
Mode switchTarget <1 ms
Power100-240 V AC plus integrated battery; target 4 hr+
ControlLaptop USB; K9 DMS Control software
EnclosureRugged carry case; target IP54
Dimensions / weightApprox. 500 x 380 x 200 mm; target <8 kg including battery

Waveform profiles

Non-Stationary Random

Pseudo-random frequency, dwell and amplitude variation for repeatable evaluation of adaptive processing and AGC behaviour.

Fast Wideband Sweep

Rapid swept-frequency profile for observing adaptive response as interference conditions change.

CW Tone

Controlled single-frequency output for baseline and comparative testing.

Linear Ramp

Controlled frequency-ramp profile for time-varying spectral test scenarios.

Adaptive Cycling

Automated cycling between defined waveform profiles for repeatable stress-testing.

Applications

Suitable for CRPA algorithm development, anti-jam antenna integration, GNSS resilience engineering, bench evaluation and platform-level development testing for authorised defence, government and defence-industry programmes.

Specifications are preliminary and subject to finalisation. Export supply is subject to applicable UK export-control and end-user requirements.
